MGU Series UV Laser Coding Systems
MGU Series UV Laser Coding Systems
- Products details
Description:
MG UV laser marking systems have been designed and developed for fully automated marking on packagingmaterials and products by use of laser radiation. Only sufficiently trained and qualified personnel shall operate,maintain and repair the laser marking system.

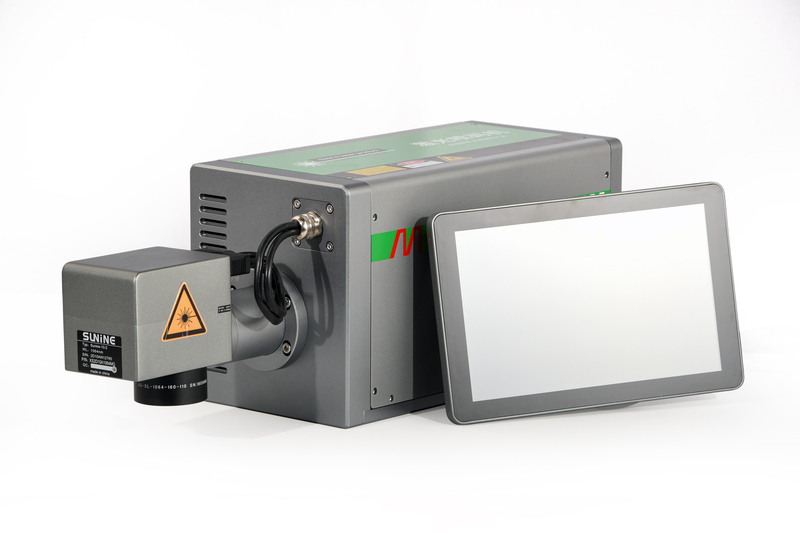

MGU Series UV laser marking systems are high-performance laser marking systems developed and producedbased on vears of experience in laser development, production and service. The
laser marking system containslaser head, controller and water chiller.
The control unit is a highly integrated industrial computer system. lt enables user to create, edit markingmessage and control the laser and
scan head.
Feature：
720-degree rotatable laser head for different automation requirements
Easily handle more production line situations
High-precision beam control
It can not only be applied to all kinds of high-density materials, but also create high-precision patterns to maintain the esthetic and integrity of products.
Easy to operate
Independent research and development of intelligent touch screen control system, with high intelligent core chip, stable operation without=
failure.
Specification：
Model | MGU03 | MGU05 | MGU10 |
Casing material | Anodized Aluminum | ||
Laser type | UV laser source | ||
Power | 3W | 5W | 10W |
Laser wavelength | 355nm | ||
Marking method | High precision 2D scanning method | ||
Marking speed | ≤12000mm/s | ||
Main control | 10.1 inch external controller | ||
Operation system | Linux P9 | ||
Cooling system | water-cooled | ||
Type of marking | Both dot and matrix & vector | ||
Reflector size | Standard：8.5mm | ||
Marking field | Standard：110mm×110mm，Maximum optional：600mm x600mm | ||
Positioning method | Red-light positioning and Infrared focus | ||
Number of lines | No limits within marking field | ||
Production line speed | 0~189m/min （varies according to materials and printing contents） | ||
Language | English, Chinese, Korean, Russian, German, Arabic, etc. | ||
File format | PLT | ||
Barcode / QR code | CODE39, CODE128, CODE126, QR, Z-Code, DM, Visual code, etc. | ||
Power supply | 220V | ||
Max power consumption | ≤500W （Water-cooled≤800W） | ||
Net weight | 14kg | ||
Interface | USB2.0/Photoelectric trigger/Synchronizer | ||
Working condition | 0-40℃（the startup time will be extended when temperature lower than 10℃） | ||

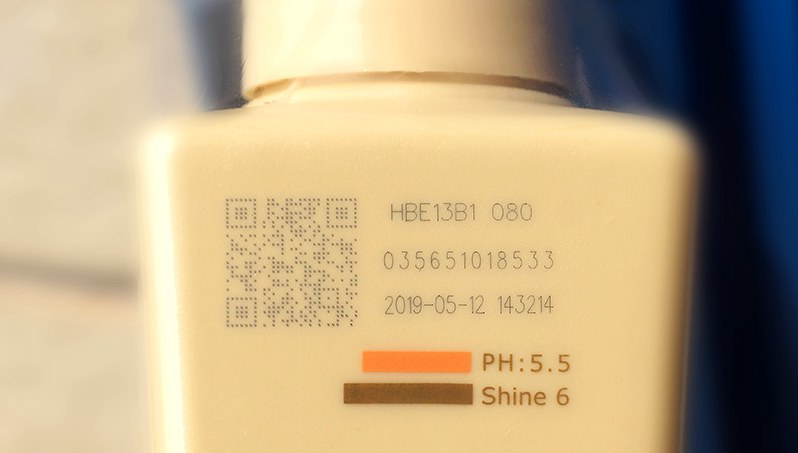

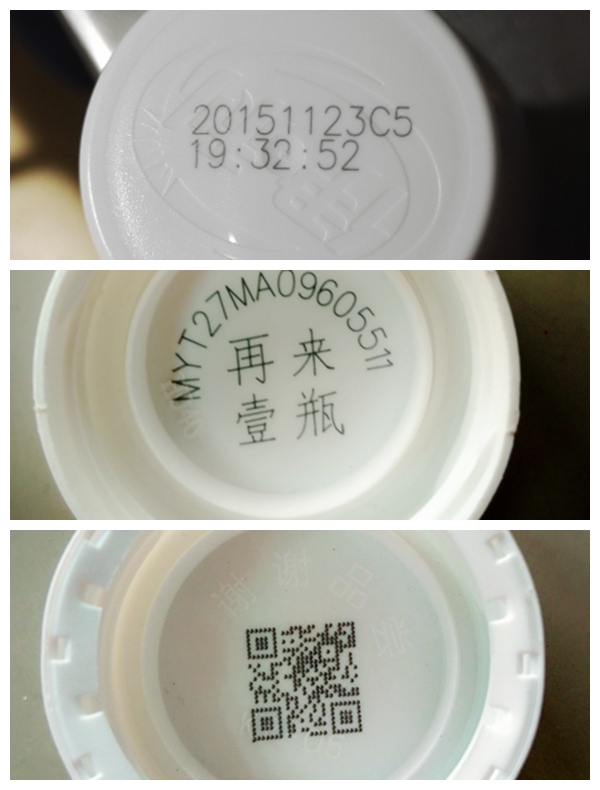

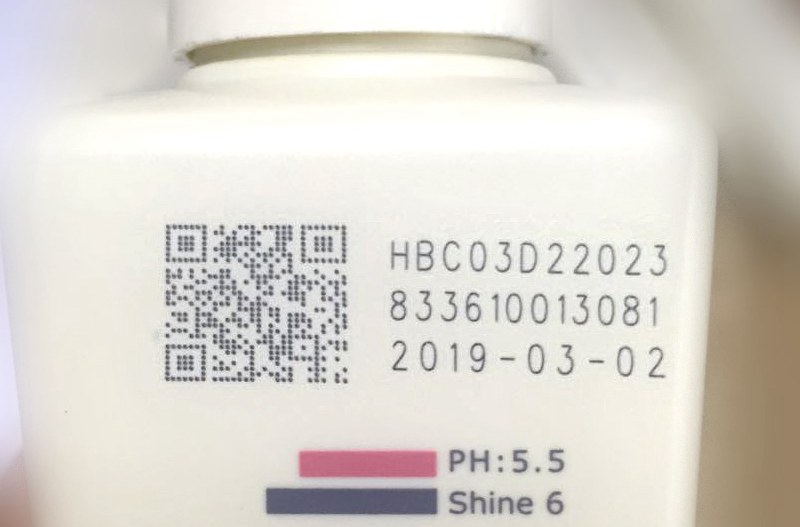

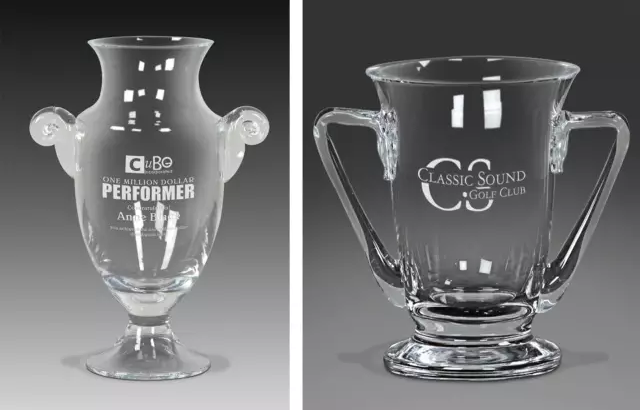

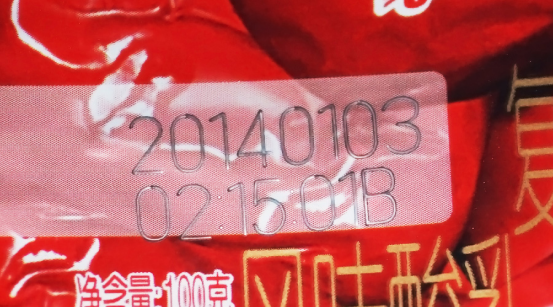

Marking Sample：
